| 产品中心 >> 锻制制管件系列 >> 锻制接管座(用于电厂) |
|
|
|
 产品实物图 |
|
|
|
接管座/20G |
接管座/12Cr1MoV |
接管座/20#锻 |
|

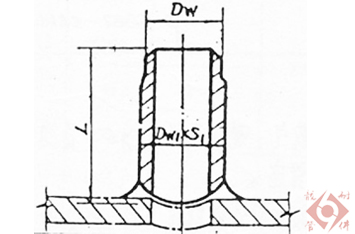

产品结构图 |
|
产品参数表 |
| PN=9.81MPa、PN=13.73MPa、PN=17.36MPa、t=540℃ |
| 标准号：D-GD87-0413-01~04 |
| 品种 |
接管座公称通径DN |
Dw×S |
L |
材料 |
PN=9.81MPa
t=540℃
D-GD87-0413-01.02 |
10 |
16×2.5 |
100 |
12Cr1MoV |
| 20 |
28×2.5 |
120 |
| (25) |
38×3.0 |
| (32) |
42×3.0 |
| 40 |
48×3.5 |
| (45) |
60×4.5 |
140 |
| 50 |
76×6.0 |
| (65) |
89×7.0 |
160 |
PN=13.73MPa
t=540℃
D-GD87-0413-01.03 |
10 |
16×2.5 |
100 |
| 20 |
28×3.0 |
120 |
| (25) |
38×4.0 |
| (32) |
42×4.0 |
| 40 |
48×5.0 |
| (45) |
60×6.0 |
140 |
| 50 |
76×8.0 |
| (65) |
89×9.0 |
160 |
PN=17.36MPa
t=540℃
D-GD87-0413-01.04 |
10 |
16×2.5 |
100 |
| 20 |
28×3.5 |
120 |
| (25) |
38×5.0 |
| (32) |
42×5.5 |
| 40 |
48×6.0 |
| (45) |
60×7.0 |
140 |
| 50 |
76×10 |
| (65) |
89×12 |
160 |
|
| |
| PN=6.4MPa、PN<10MPa |
| 标准号：D-GD87-0414-01.02 |
| 品种 |
接管座公称通径DN |
Dw×S |
L |
材料 |
PN=6.4
PN<10MPa
D-GD87-0414-01.02 |
10 |
14×2 |
90 |
20号钢 |
| 15 |
18×2 |
| 20 |
25×2 |
100 |
| 25 |
32×2.5 |
| 32 |
38×2.5 |
120 |
| (40) |
45×3 |
| 50 |
57×3 |
| 65 |
76×4 |
140 |
|
| |
| PN=17.15MPa
t=230℃ 、PN=22.56MPa
t=240℃ 、PN=28.22MPa
t=270℃ |
| 标准号：D-GD87-0415-01~04 |
| 品种 |
接管座公称通径DN |
Dw×S |
L |
材料 |
PN=17.15MPa
t=230℃
D-GD87-0415-01.02 |
10 |
16×2.5 |
100 |
20号钢 |
| 20 |
28×2.5 |
120 |
| (25) |
38×3.0 |
| (32) |
42×3.5 |
| 40 |
48×4.0 |
| (45) |
60×5.0 |
140 |
| 50 |
76×6.0 |
| (65) |
89×7.0 |
160 |
PN=22.56MPa
t=240℃
D-GD87-0415-01.03 |
10 |
16×2.5 |
100 |
| 20 |
28×3.0 |
120 |
| (25) |
38×4.0 |
| (32) |
42×4.0 |
| 40 |
48×5.0 |
| (45) |
60×6.0 |
140 |
| 50 |
76×8.0 |
| (65) |
89×9.0 |
160 |
PN=28.22MPa
t=270℃
D-GD87-0415-01.04 |
10 |
16×2.5 |
100 |
| 20 |
28×3.5 |
120 |
| (25) |
38×5.0 |
| (32) |
42×5.5 |
| 40 |
48×6.0 |
| (45) |
60×7.5 |
140 |
| 50 |
76×10 |
| (65) |
89×12 |
160 |
|
|
|
|
